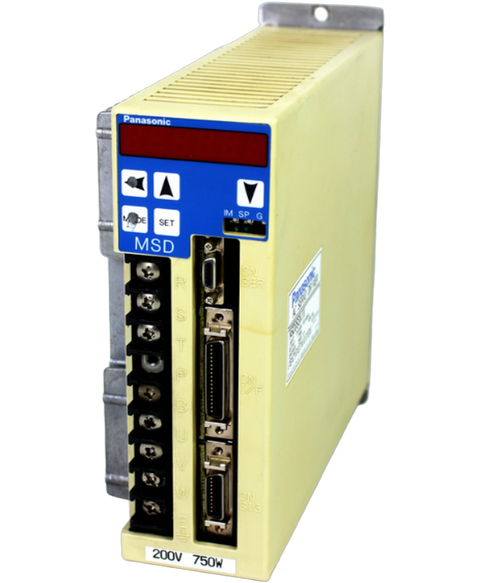

Panasonic MSD083A1XX
The MSD083A1XX from Panasonic is an AC servo driver for efficient control in various applications. It accommodates motors with a maximum output of 750W and operates within a power supply voltage range of 200 to 230 VAC across three phases.
This Panasonic MSD083A1XX is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Minas a4 range and is referenced internally as PartLogic SKU PL26805461902.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Panasonic |
| Product Line | MS Series |
| Part Number | MSD083A1XX |
| Weight | 2.63 lbs (1.19 kg) |
| Description | AC Servo Driver |
| Ambient Humidity | 90% RH or less (no condensation) |
| Ambient Vibrations | 4.9 m/s^2 (0.5G) or less, 10 to 60 Hz |
| Applicable Load Inertia | Less than 30 times the inertia of motor (400W or less) |
| Output of Applicable Motor | 750W |
| Power Source Rated Voltage | 200V AC |
| Power Source Voltage Range | 200 to 230 VAC |
| Power Source Voltage Phase | 3-phase |
| Rotary Encoder Specification | Incremental encoder |
| Encoder Pulse Count | 2500 p/r |
| Control Method | Transistor PWM (sine-wave form) |
| Regenerative | Built-in resistor |
| Ambient Operational Temperature | 0 to 50°C |
| Ambient Storage Temperature | -20 to 80°C |
| Brand | Panasonic |
