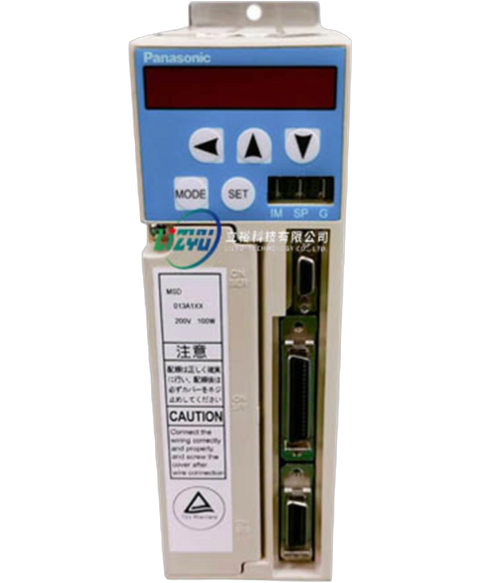

Panasonic MSD013A1XX
The Panasonic MSD013A1XX is a purpose-built AC servo driver designed primarily for high-performance applications. With a maximum output capability of 100W, it effectively caters to systems with load inertia not exceeding 30 times that of a 400W motor.
This Panasonic MSD013A1XX is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Minas a4 range and is referenced internally as PartLogic SKU PL26805442659.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Panasonic |
| Product Line | MS Series |
| Part Number | MSD013A1XX |
| Weight | 0.88 lbs (0.40 kg) |
| Product | AC Servo Driver |
| Applicable Load Inertia | Less than 30 times the inertia of motor (400W or less) |
| Output of Applicable Motor | 100W |
| Power Source Rated Voltage | 200V AC |
| Power Source Voltage Range | 200 to 230 VAC |
| Power Source Voltage Phase | 3-phase |
| Rotary Encoder Specification | Incremental encoder |
| Encoder Pulse Count | 2500 p/r |
| Control Method | Transistor PWM (sine-wave form) |
| Regenerative | Built-in resistor |
| Ambient Operational Temperature | 0 to 50°C |
| Ambient Storage Temperature | -20 to 80°C |
| Ambient Humidity | 90% RH or less (no condensation) |
| Ambient Vibrations | 4.9 m/s^2 (0.5G) or less, 10 to 60 Hz |
| Brand | Panasonic |
