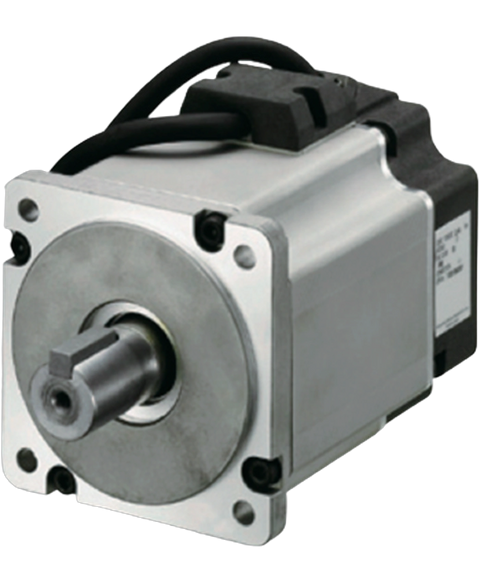

Panasonic MHMD082G1U
A5 - 750W 20 BIT INCREMENTAL ENCODER, 200V MOTOR, KEY & TAP SHAFT (OIL SEAL)
This Panasonic MHMD082G1U is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors > Minas a5 range and is referenced internally as PartLogic SKU PL26805601453.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, TUV, UL |
| Encoder Type | Incremental |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Mounting Hole Spacing | 89.9922 mm |
| Power Rating | 750 W |
| RoHS | Compliant |
| RPM | 3000 RPM |
| Termination | Wire Leads |
| Weight | 2.494758 kg |
