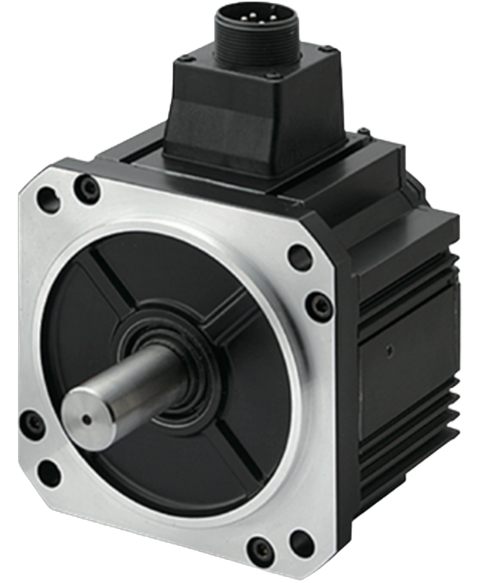

Panasonic MDME102GCG
Panasonic A5 Middle Inertia Servo Motor, 1.0kW, 200V, Incremental 20-Bit, IP65, Key-Way with Oil Seal
This Panasonic MDME102GCG is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors > Minas a5 range and is referenced internally as PartLogic SKU PL26972089084.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, TUV, UL |
| Encoder Type | Incremental |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Mounting Hole Spacing | 145.0086 mm |
| Power Rating | 1 kW |
| RoHS | Compliant |
| RPM | 2000 RPM |
| Termination | Connector |
| Weight | 4.989516 kg |
