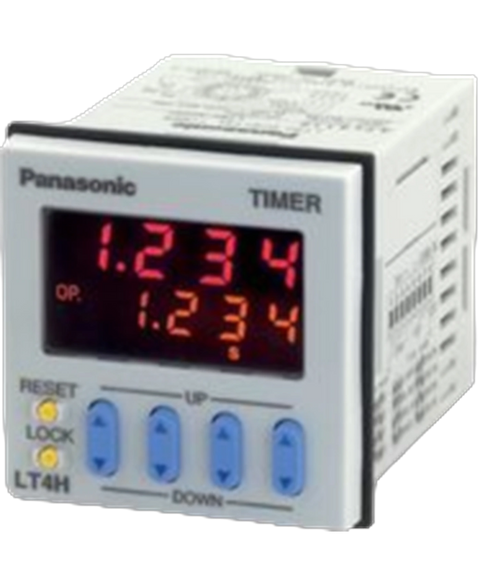

Panasonic LT4H-AC240VS
Discontinued by manufacturer, digital timer, lt4h, din48, IP66, backlight, multi-range, multi-mode, 0.001s-999.9h, relay, screw, 100-240v ac
This Panasonic LT4H-AC240VS is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controllers > Timers range and is referenced internally as PartLogic SKU PL26805428843.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 55 °C |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 240 V |
| Contact Current Rating | 3 A |
| Current Rating | 5 A |
| Display Type | LCD |
| Height | 48 mm |
| Max Operating Temperature | 55 °C |
| Max Supply Voltage (AC) | 240 V |
| Max Voltage Rating (AC) | 240 V |
| Min Operating Temperature | -10 °C |
| Mount | DIN Rail, Flush, Panel |
| Number of Contacts | 1 |
| Number of Pins | 11 |
| Operating Supply Voltage | 240 V |
| Ratings | IP66 |
| REACH SVHC | No |
| Relay Type | Integrated |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 30 V |
| Width | 48 mm |
