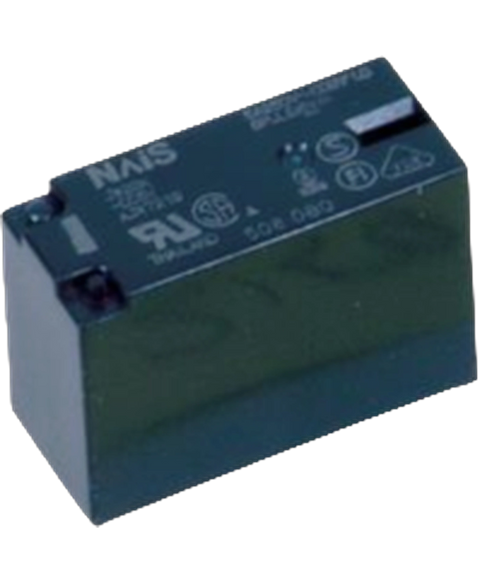

Panasonic JW2SN-DC5V
General purpose relay, jw series, power, non latching, dpdt, 5VDC, 5A
This Panasonic JW2SN-DC5V is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805304356.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 60 °C |
| Approvals | CSA, TUV, UL, VDE |
| Case/Package | DIP |
| Coil Current | 106 mA |
| Coil Power | 530 mW |
| Coil Resistance | 47 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5 V |
| Contact Current Rating | 5 A |
| Contact Material | Silver, Tin |
| Contact Plating | Silver |
| Contact Resistance | 100 MΩ |
| Current Rating | 5 A |
| Depth | 12.8 mm |
| Height | 20.3 mm |
| Lead Free | Lead Free |
| Length | 28.6 mm |
| Max Current Rating | 5 A |
| Max Operating Temperature | 60 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 30 V |
| Min Operating Temperature | -40 °C |
| Mount | PCB, Through Hole |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Number of Poles | 2 |
| Operate Time | 15 ms |
| Packaging | Bulk |
| Power Consumption | 530 mW |
| Power Rating | 530 mW |
| Radiation Hardening | No |
| REACH SVHC | No |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| RoHS | Compliant |
| Switching Current | 5 A |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Type | Electromechanical |
| Voltage Rating (AC) | 250 V |
| Voltage Rating (DC) | 30 V |
| Weight | 13 g |
| Width | 12.8 mm |
