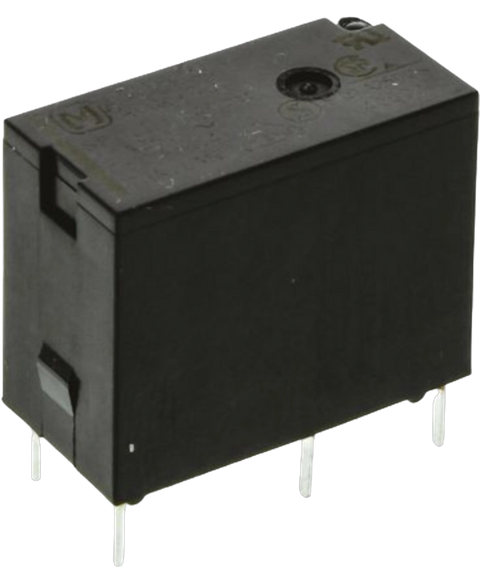

Panasonic JQ1P-24V-F
24VDC power relay, SPDT, 10A, through hole, 1.44kOhm coil, JQ series.
This Panasonic JQ1P-24V-F is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805297010.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 70 °C |
| Approvals | CSA, TUV, UL, VDE |
| Coil Current | 16.7 mA |
| Coil Power | 400 mW |
| Coil Resistance | 1.44 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 10 A |
| Contact Material | Silver, Tin |
| Current Rating | 10 A |
| Depth | 10 mm |
| Height | 16.6 mm |
| Lead Free | Lead Free |
| Length | 20 mm |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 110 V |
| Min Operating Temperature | -40 °C |
| Mount | PCB, Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 5 |
| Operate Time | 20 ms |
| Packaging | Bulk |
| Power Consumption | 400 mW |
| Power Rating | 400 mW |
| REACH SVHC | Unknown |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| RoHS | Compliant |
| Switching Current | 10 A |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250 V |
| Weight | 7 g |
| Width | 10 mm |
