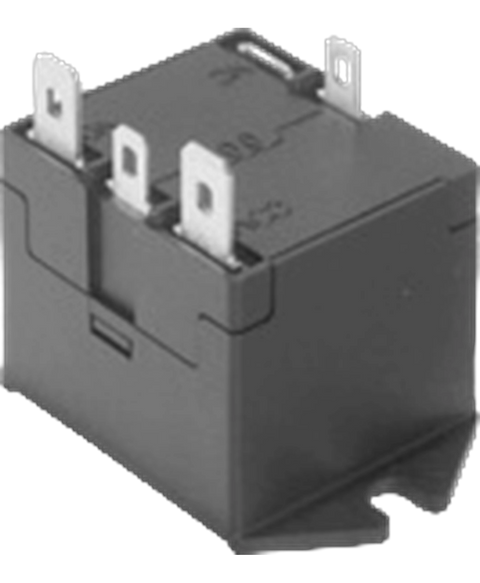

Panasonic JA1A-TM-AC24V
Discontinued by manufacturer, electromechanical relay, 24VAC control voltage, 1HP, 15A , 125VAC, 10A , 250VAC
This Panasonic JA1A-TM-AC24V is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805447337.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Current | 58 mA |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 24 V |
| Contact Current Rating | 15 A |
| Contact Material | Silver |
| Height | 28.5 mm |
| Lead Free | Lead Free |
| Length | 34.7 mm |
| Max Current Rating | 15 A |
| Max Operating Temperature | 50 °C |
| Max Voltage Rating (AC) | 250 V |
| Min Operating Temperature | -10 °C |
| Mount | Chassis Mount |
| Number of Pins | 4 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| RoHS | Non-Compliant |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Width | 30.1 mm |
