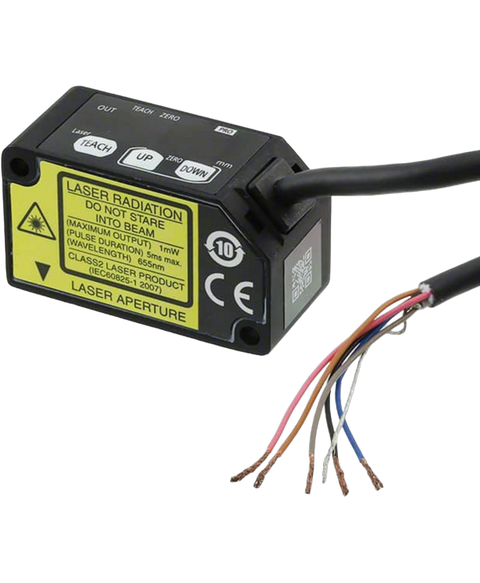

Panasonic HG-C1400
Distance sensor, micro laser, cmos type, npn, 400mm measurement center, measuring range 200mm, red semiconductor laser class 2, 12-24VDC power supply, 40mA at 24v, 65mA at 12v, light on or dark on
This Panasonic HG-C1400 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Displacement sensors > Laser displacement sensors range and is referenced internally as PartLogic SKU PL26805463552.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Cable Length | 1.999996 m |
| Connector Type | Cable |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -10 °C |
| Number of Pins | 3 |
| Output Configuration | NPN - Open Collector |
| Ratings | IP67 |
| Response Time | 1.5 ms |
| RoHS | Compliant |
| Sensing Distance | 399.9992 mm |
