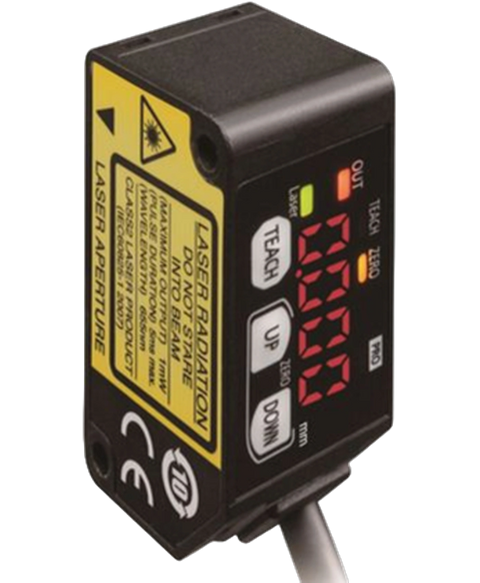

Panasonic HG-C1100-P
Panasonic HG-C1100-P laser distance sensor, 100mm, PNP.
This Panasonic HG-C1100-P is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Displacement sensors > Laser displacement sensors range and is referenced internally as PartLogic SKU PL26805425146.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Cable Length | 1.999996 m |
| Case/Package | 100 |
| Color | Black |
| Connector Type | Cable |
| Height | 25 mm |
| Housing Material | Aluminium |
| Length | 44 mm |
| Max Operating Temperature | 45 °C |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -10 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Brackets |
| Output Configuration | PNP - Open Collector |
| Output Current | 50 mA |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| Response Time | 1.5 ms |
| RoHS | Compliant |
| Sensing Distance | 99.9998 mm |
| Width | 20 mm |
