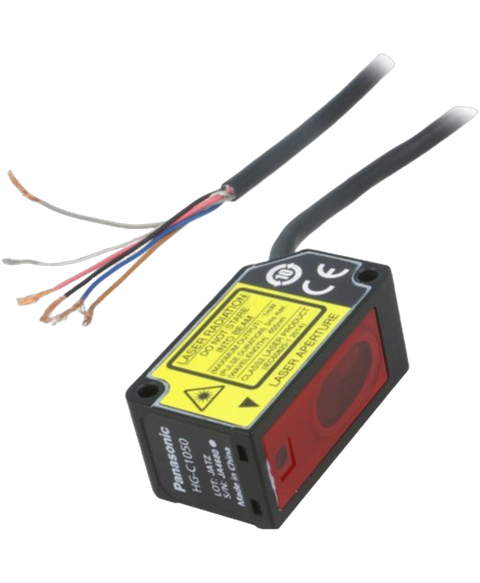

Panasonic HG-C1050
Distance sensor, micro laser type, npn output, 50mm center distance, +,-15mm range
This Panasonic HG-C1050 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Displacement sensors > Laser displacement sensors range and is referenced internally as PartLogic SKU PL26805314591.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Cable Length | 1.999996 m |
| Connector Type | Cable |
| Housing Material | Aluminium |
| Max Operating Temperature | 45 °C |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -10 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Brackets |
| Output Configuration | NPN - Open Collector |
| Output Current | 50 mA |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| Response Time | 1.5 ms |
| RoHS | Compliant |
| Sensing Distance | 50.0126 mm |
