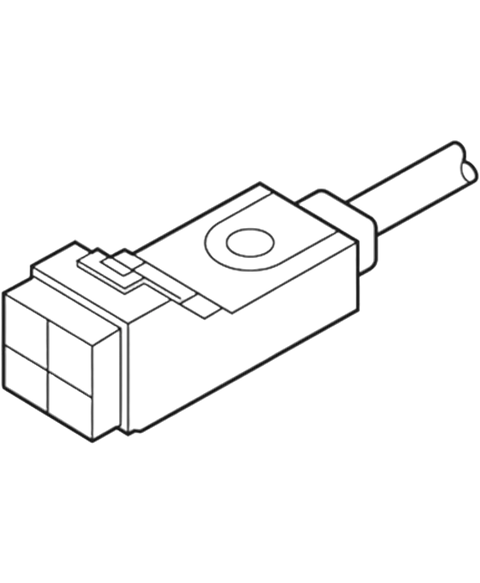

Panasonic GXL-8HU
Inductive proximity sensor, rectangular, 2.5mm, NO, cable.
This Panasonic GXL-8HU is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805414016.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Body Material | Plastic |
| Cable Length | 4.99872 m |
| Case/Package | Module |
| Depth | 9.2 mm |
| Housing Material | PBT |
| Length | 26 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Mount | Panel |
| Operating Supply Voltage | 24 V |
| Ratings | IP67 |
| Response Frequency | 1 kHz |
| RoHS | Compliant |
| Sensing Distance | 1.8034 mm |
| Sensing Method | Inductive |
| Shielding | Unshielded |
| Switching Current | 800 µA |
| Switching Frequency | 1 kHz |
| Termination | Connector |
| Width | 8 mm |
