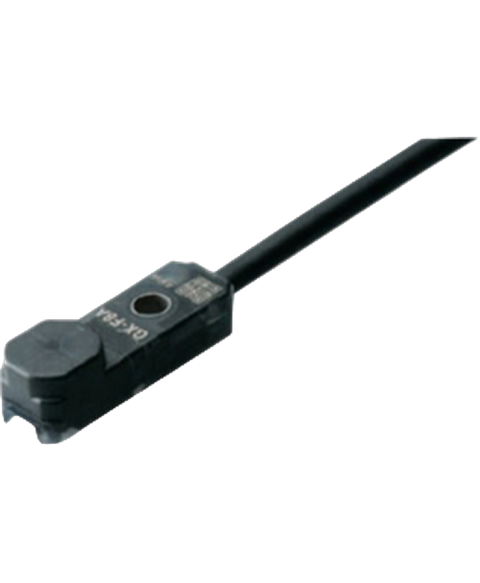

Panasonic GX-F8B-P
Proximity sensor, inductive, 12-24VDC, rectangular shape, front sense, 2.5mm max sensing distance, 1 meter connection cable, pnp, normally closed
This Panasonic GX-F8B-P is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805430958.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Body Material | PBT, Plastic |
| Depth | 7.4 mm |
| Housing Material | PBT |
| Length | 24 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Mount | Cable |
| Operating Supply Voltage | 24 V |
| Ratings | IP68 |
| Response Frequency | 500 Hz |
| RoHS | Compliant |
| Sensing Distance | 2.1082 mm |
| Sensing Method | Inductive |
| Shielding | Shielded |
| Switching Current | 15 mA |
| Switching Frequency | 500 Hz |
| Termination | Connector |
| Thread Size | M8 |
| Width | 8 mm |
