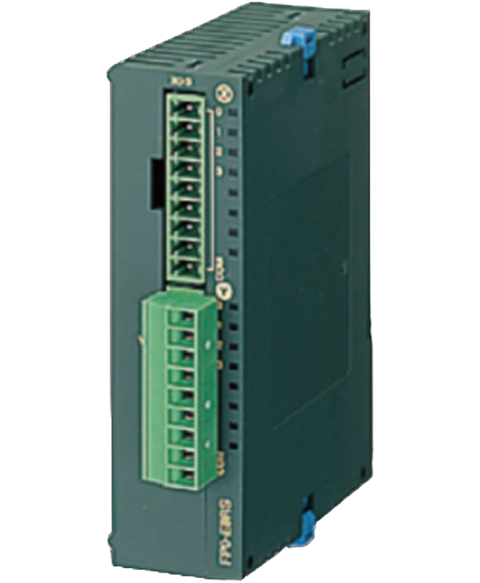

Panasonic FP0-E16RS
PLC expansion unit, 8 input, 8 output, 24VDC.
This Panasonic FP0-E16RS is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital i o range and is referenced internally as PartLogic SKU PL26805424257.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, EN, UL |
| Case/Package | Module |
| Depth | 60 mm |
| Height | 90 mm |
| Length | 90 mm |
| Max Operating Temperature | 55 °C |
| Memory Type | FLASH, ROM |
| Min Operating Temperature | 0 °C |
| Mount | DIN Rail |
| Number of Inputs | 8 |
| Number of Outputs | 8 |
| RoHS | Compliant |
| Turn-On Delay Time | 1 ms |
| Width | 25 mm |
