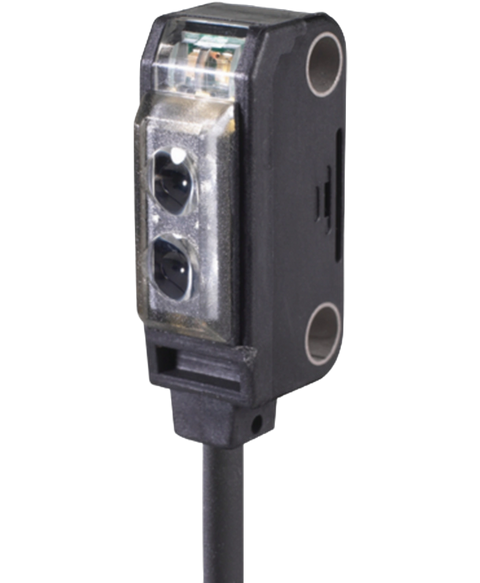

Panasonic EX-22A
Panasonic EX22APN photoelectric sensor, diffuse reflective, 5–160mm, PNP.
This Panasonic EX-22A is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors > Compact photoelectric sensors range and is referenced internally as PartLogic SKU PL26805432398.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Height | 22 mm |
| Housing Material | PET |
| Max Operating Temperature | 55 °C |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Screw |
| Ratings | IP67 |
| REACH SVHC | No |
| Response Time | 500 µs |
| RoHS | Compliant |
| Sensing Distance | 160 mm |
| Termination | Cable |
| Width | 8.2 mm |
