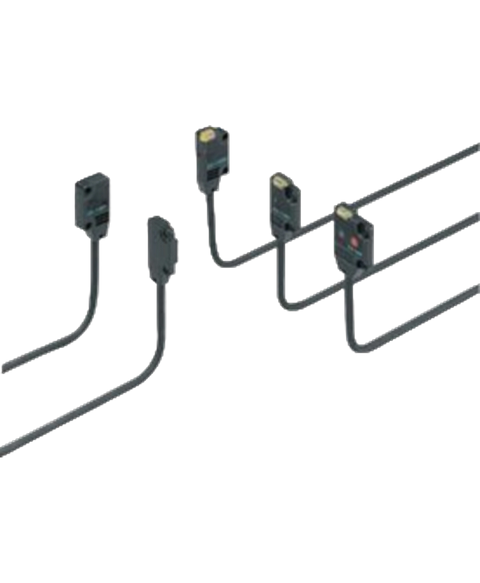

Panasonic EX-13EA-PN
Panasonic EX13EAPN photoelectric sensor, through-beam, 500mm, PNP, cable.
This Panasonic EX-13EA-PN is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors > Compact photoelectric sensors range and is referenced internally as PartLogic SKU PL26805406334.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Cable Length | 2 m |
| Housing Material | Polybutylene |
| Lead Free | Lead Free |
| Max Operating Temperature | 55 °C |
| Max Supply Voltage | 24 V |
| Max Supply Voltage (DC) | 24 V |
| Max Voltage Rating (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage | 12 V |
| Min Supply Voltage (DC) | 12 V |
| Mount | Screw |
| Output Current | 50 mA |
| Ratings | IP67 |
| REACH SVHC | No |
| Response Time | 500 µs |
| RoHS | Compliant |
| Sensing Distance | 500 mm |
| Termination | Cable |
| Turn-On Delay Time | 500 µs |
