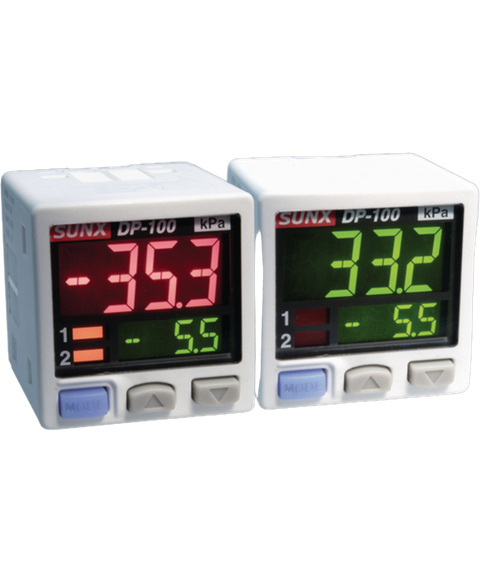

Panasonic DP-102
Digital pressure sensor, dual, dp-100 series, standard type, for high pressure, -0.100 to +1.000 mpa, m5 female thread, r 1,8 male thread, npn open-collector transistor comparative output
This Panasonic DP-102 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Pressure sensors > Digital pressure sensors range and is referenced internally as PartLogic SKU PL26805460413.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Accuracy | 1 % |
| Case/Package | Module |
| Height | 30 mm |
| Housing Material | PBT |
| Lead Free | Lead Free |
| Lead Length | 2 m |
| Material | PBT |
| Max Operating Temperature | 50 °C |
| Max Supply Voltage | 24 V |
| Min Operating Temperature | -10 °C |
| Min Supply Voltage | 12 V |
| Mount | Screw |
| Number of Outputs | 2 |
| Number of Pins | 4 |
| Pressure Type | Gauge |
| Ratings | IP40 |
| REACH SVHC | No |
| Response Time | 2.5 ms |
| RoHS | Compliant |
| Termination | Connector |
| Voltage Rating (DC) | 24 V |
| Width | 30 mm |
