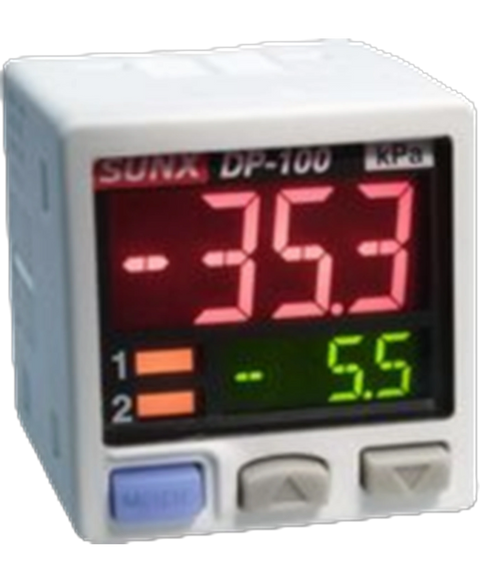

Panasonic DP-101-M
Digital pressure sensor, -100 to +100kpa; supply voltage min:12VDC; supply voltage max:24VDC; backlighting colour:-; NO. of digits , alpha:8; display size:30mm x 30mm; screen size:1.67; panel cutout height:-; panel cutout width:-; rohs compliant: yes
This Panasonic DP-101-M is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Pressure sensors > Digital pressure sensors range and is referenced internally as PartLogic SKU PL26805432534.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Output Type | NPN - Open Collector |
| Port Style | Threaded |
| Pressure Type | Gauge |
| RoHS | Compliant |
| Termination | Connector |
