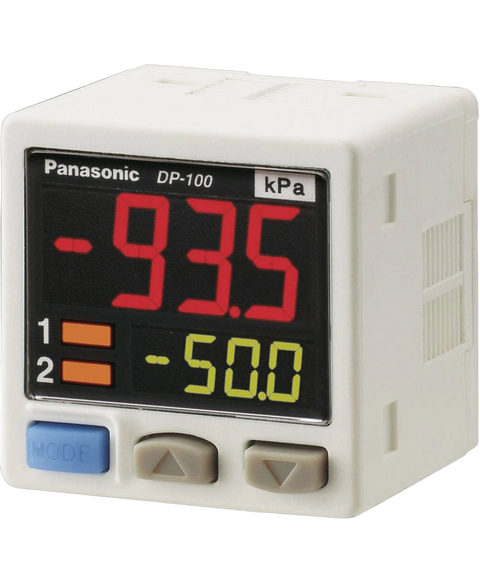

Panasonic DP-101-E-P
Degital pressure, std version, pnp, -100.0 to +100kpa low-pressure type, m5 female + g1,8 male
This Panasonic DP-101-E-P is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Pressure sensors > Digital pressure sensors range and is referenced internally as PartLogic SKU PL26805413827.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Accuracy | 1 % |
| Case/Package | Module |
| Height | 30 mm |
| Housing Material | PBT |
| Lead Length | 2 m |
| Material | PBT |
| Max Operating Temperature | 50 °C |
| Max Supply Voltage | 24 V |
| Min Operating Temperature | -10 °C |
| Min Supply Voltage | 12 V |
| Number of Outputs | 2 |
| Number of Pins | 4 |
| Pressure Type | Gauge |
| Ratings | IP40 |
| REACH SVHC | Unknown |
| Response Time | 2.5 ms |
| RoHS | Compliant |
| Termination | Connector |
| Voltage Rating (DC) | 24 V |
| Width | 30 mm |
