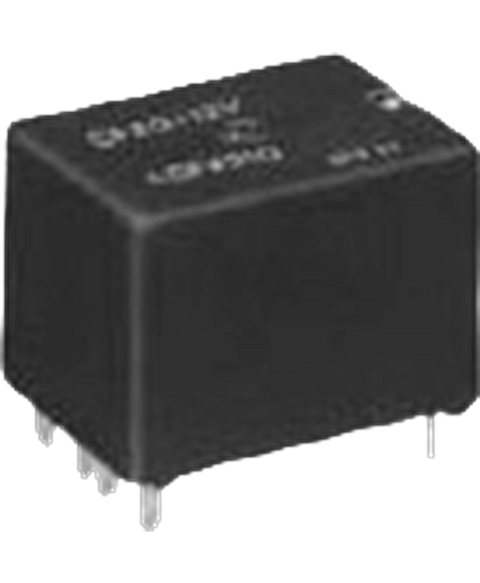

Panasonic CF2-12V
Relay, automotive, spdt, 12VDC, 10A
This Panasonic CF2-12V is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805433906.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Current | 53.3 mA |
| Coil Power | 640 mW |
| Coil Resistance | 225 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12 V |
| Contact Current Rating | 10 A |
| Contact Material | Cadmium, Silver |
| Depth | 16.5 mm |
| Lead Free | Lead Free |
| Length | 22.5 mm |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (DC) | 14 V |
| Min Operating Temperature | -40 °C |
| Mount | Through Hole |
| Number of Pins | 8 |
| Operate Time | 10 ms |
| Packaging | Bulk |
| Power Consumption | 640 mW |
| Relay Type | Automotive |
| Release Time | 10 ms |
| RoHS | Compliant |
| Termination | PC Pin |
| Throw Configuration | SPDT |
