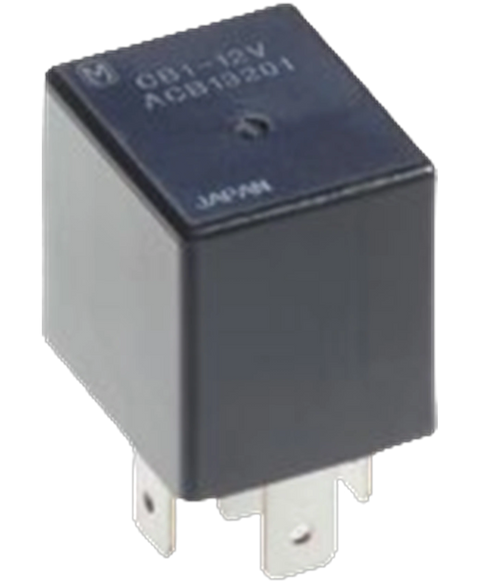

Panasonic CB1-R-24V
Panasonic CB1-R-24V automotive relay, 24VDC coil, SPDT, 20A, plug-in.
This Panasonic CB1-R-24V is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805329819.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Current | 84 mA |
| Coil Power | 2 W |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24 V |
| Contact Material | Cadmium, Silver |
| Depth | 22 mm |
| Height | 25 mm |
| Lead Free | Lead Free |
| Length | 26 mm |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (DC) | 28 V |
| Min Operating Temperature | -40 °C |
| Mount | Plug-In, Socketable |
| Number of Pins | 5 |
| Operate Time | 15 ms |
| Packaging | Bulk |
| Power Consumption | 1.8 W |
| REACH SVHC | Unknown |
| Relay Type | Automotive |
| Release Time | 15 ms |
| RoHS | Compliant |
| Schedule B | 8536410050, 8536410050|8536410050|8536410050|8536410050|8536410050 |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Weight | 33 g |
| Width | 26 mm |
