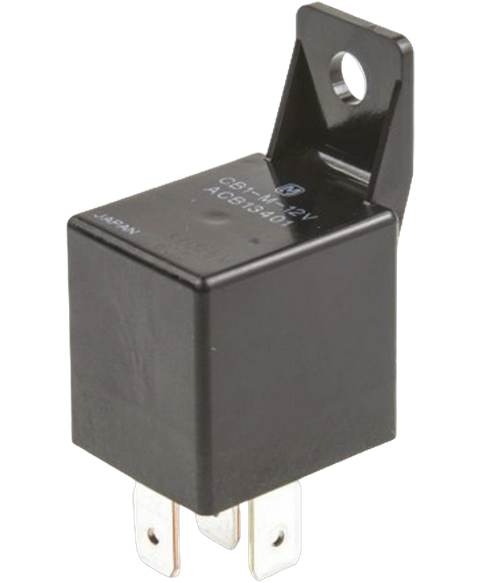

Panasonic CB1-M-12V
Relay, automotive, spdt, 14VDC, 40A; coil voltage:12VDC; contact current:40A; contact configuration:spdt; relay mounting:panel mount; relay terminals:quick connect; product range:cb series; contact voltage dc nom:14v; depth:26mm rohs compliant: yes
This Panasonic CB1-M-12V is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26801414278.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 85 °C |
| Coil Current | 117 mA |
| Coil Power | 1.4 W |
| Coil Resistance | 103 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12 V |
| Contact Current Rating | 40 A |
| Contact Material | Cadmium, Silver |
| Current Rating | 40 A |
| Depth | 22 mm |
| Height | 25 mm |
| Lead Free | Lead Free |
| Length | 30 mm |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (DC) | 14 V |
| Min Operating Temperature | -40 °C |
| Mount | Brackets, Chassis Mount, Panel |
| Number of Contacts | 1 |
| Number of Pins | 5 |
| Operate Time | 15 ms |
| Packaging | Bulk |
| Power Consumption | 1.4 W |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Relay Type | Automotive |
| Release Time | 15 ms |
| RoHS | Compliant |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (DC) | 14 V |
