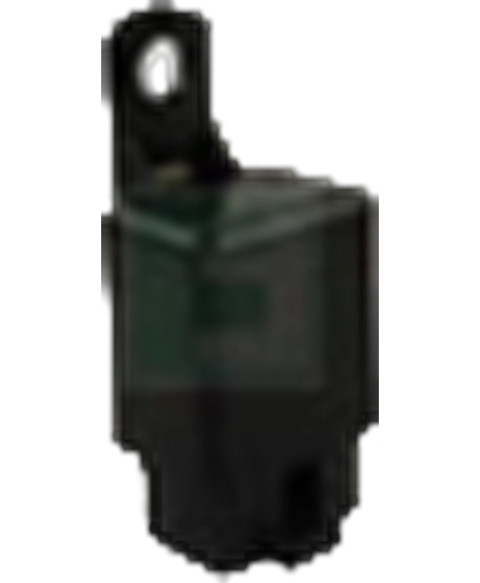

Panasonic CA1A-DC12V-N
Relay, automotive, spst-NO, 12VDC, 30A, coil voltage:12VDC, contact current:30A, contact configuration:spst-NO, relay mounting:panel, relay terminals:quick connect, product range:-, contact voltage dc nom:12v, coil resistance:80ohm rohs compliant: yes
This Panasonic CA1A-DC12V-N is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805424466.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 80 °C |
| Coil Current | 150 mA |
| Coil Power | 1.8 W |
| Coil Resistance | 80 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12 V |
| Contact Current Rating | 30 A |
| Contact Material | Cadmium, Silver |
| Current Rating | 30 A |
| Depth | 17.4 mm |
| Lead Free | Lead Free |
| Length | 21.5 mm |
| Max Current Rating | 150 A |
| Max Operating Temperature | 80 °C |
| Max Voltage Rating (DC) | 16 V |
| Min Operating Temperature | -30 °C |
| Mount | Chassis Mount |
| Number of Contacts | 1 |
| Number of Pins | 4 |
| Operate Time | 10 ms |
| REACH SVHC | Unknown |
| Relay Type | Automotive |
| Release Time | 10 ms |
| RoHS | Compliant |
| Schedule B | 8536410050, 8536410050|8536410050|8536410050|8536410050|8536410050 |
| Switching Current | 150 A |
| Termination | Plug |
| Throw Configuration | SPST |
| Weight | 19 g |
