Panasonic AZD1004

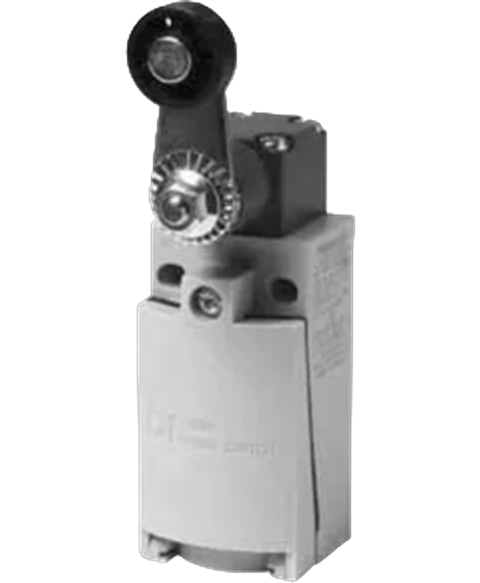

Panasonic AZD1004 limit switch, roller arm actuator.
This Panasonic AZD1004 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Switches > Basic switches range and is referenced internally as PartLogic SKU PL26805423051.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CSA, TUV, UL |
| Contact Resistance | 25 mΩ |
| Depth | 45.5 mm |
| Electrical Life | 150 kcycles |
| Height | 104 mm |
| Length | 30 mm |
| Max Operating Temperature | 80 °C |
| Max Voltage Rating (AC) | 380 V |
| Max Voltage Rating (DC) | 220 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -30 °C |
| Mount | Screw |
| Operating Force | 4.9 N |
| Orientation | Right Angle |
| RoHS | Non-Compliant |
| Termination | Conduit |
| Throw Configuration | SPDT |
