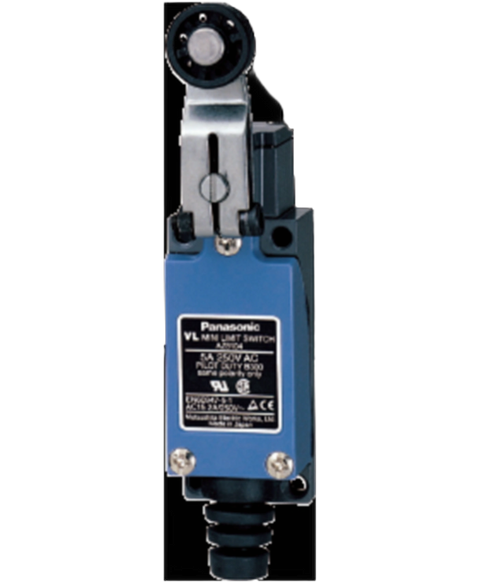

Panasonic AZ8108
Miniature limit switch with adjustable roller lever, Contacts: SPDT (Single Pole Double Shot)., Rated Voltage,Current (AC): 5A at 250V AC (resistive load)., Rated Voltage,Current (DC): 0.4A at 125V DC (resistive load)., Degree of protection: IP64 (dust-proof, oil-proof and splash-proof)., Materials: Metal body with plastic cover., Operation: Snap action.
This Panasonic AZ8108 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Switches > Basic switches range and is referenced internally as PartLogic SKU PL26805425993.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | TUV, UL |
| Case/Package | 125 |
| Contact Resistance | 15 mΩ |
| Current Rating | 5 A |
| Depth | 47.7 mm |
| Electrical Life | 300 kcycles |
| Height | 165.5 mm |
| Length | 28 mm |
| Max Operating Temperature | 60 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 125 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -20 °C |
| Mount | Screw |
| Operating Force | 7.84 N |
| Orientation | Right Angle |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250 V |
