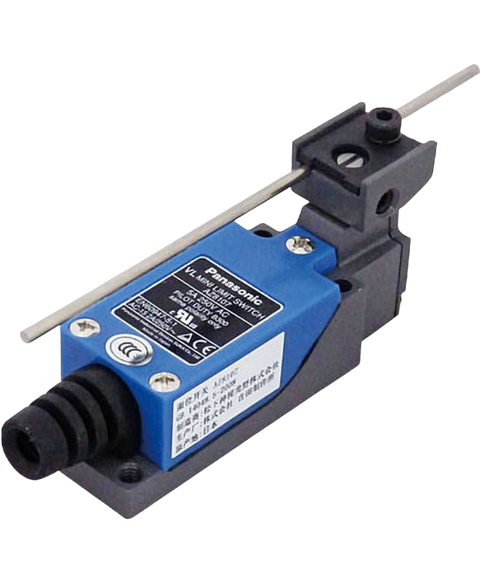

Panasonic AZ8107
Limit switch, flexible rod, spdt; actuator style:flexible rod; operating force max:7.84n; contact voltage ac max:250v; contact voltage dc max:125v; co, please use az8107-sub
This Panasonic AZ8107 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Switches > Basic switches range and is referenced internally as PartLogic SKU PL26805417193.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | TUV, UL |
| Contact Resistance | 15 mΩ |
| Current Rating | 5 A |
| Depth | 44.9 mm |
| Electrical Life | 300 kcycles |
| Height | 204.5 mm |
| Length | 28 mm |
| Max Operating Temperature | 60 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 125 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -20 °C |
| Mount | Screw |
| Operating Force | 7.84 N |
| Orientation | Right Angle |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250 V |
