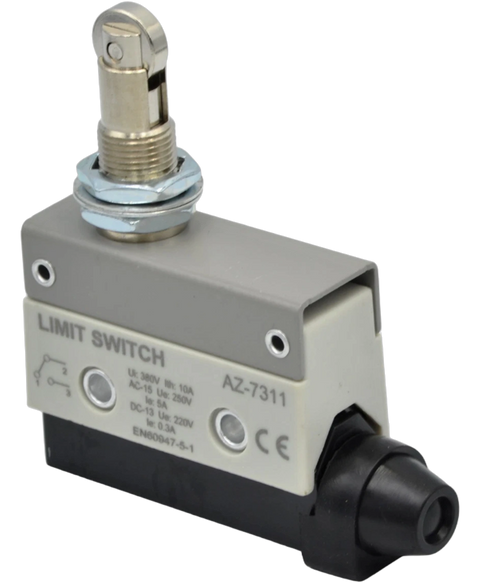

Panasonic AZ7311
Discontinued by manufacturer, limit switch, roller plunger, spdt, 10A, 250VAC
This Panasonic AZ7311 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Switches > Basic switches range and is referenced internally as PartLogic SKU PL26805413371.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | TUV, UL |
| Contact Current Rating | 10 A |
| Contact Resistance | 15 mΩ |
| Current Rating | 10 A |
| Depth | 21.4 mm |
| Electrical Life | 200 kcycles |
| Height | 77.3 mm |
| Length | 70.5 mm |
| Max Operating Temperature | 60 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 115 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -20 °C |
| Mount | Panel, Screw |
| Operating Force | 5.88 N |
| Orientation | Straight |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | Cable |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 120 V |
