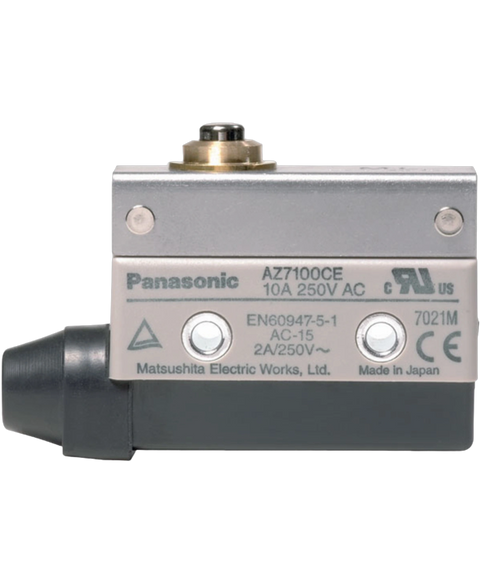

Panasonic AZ7100
Ml short push plunger standard type limit switch
This Panasonic AZ7100 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Switches > Basic switches range and is referenced internally as PartLogic SKU PL26805314533.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | TUV, UL |
| Contact Resistance | 15 mΩ |
| Depth | 21.4 mm |
| Electrical Life | 200 kcycles |
| Height | 49 mm |
| Length | 70.5 mm |
| Max Operating Temperature | 60 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 115 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -20 °C |
| Mount | Screw |
| Operating Force | 5.88 N |
| Orientation | Straight |
| RoHS | Non-Compliant |
| Termination | Cable |
| Throw Configuration | SPDT |
