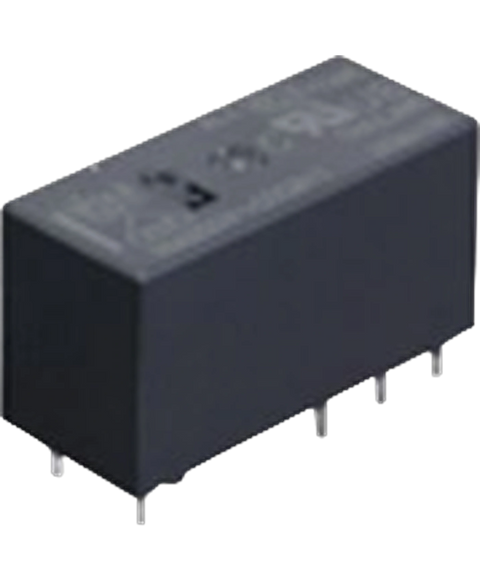

Panasonic ALZ51B12
Relay, spst-NO, 277VAC, 30VDC, 16A, contact configuration:spst-NO, coil voltage:12VDC, contact current:16A, product range:lz(alz) series, relay mounting:through hole, coil type:non latching, contact voltage V AC:277VAC rohs compliant: yes
This Panasonic ALZ51B12 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805331476.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | DIP |
| Coil Current | 33.3 mA |
| Coil Power | 400 mW |
| Coil Resistance | 360 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12 V |
| Contact Current Rating | 16 A |
| Contact Material | Silver, Tin |
| Contact Resistance | 100 Ω |
| Depth | 12.5 mm |
| Height | 15.7 mm |
| Lead Free | Lead Free |
| Length | 28.8 mm |
| Max Current Rating | 16 A |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (AC) | 440 V |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Operate Time | 15 ms |
| Power Consumption | 400 mW |
| Power Rating | 400 mW |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| RoHS | Compliant |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 440 V |
| Weight | 12 g |
| Width | 12.5 mm |
