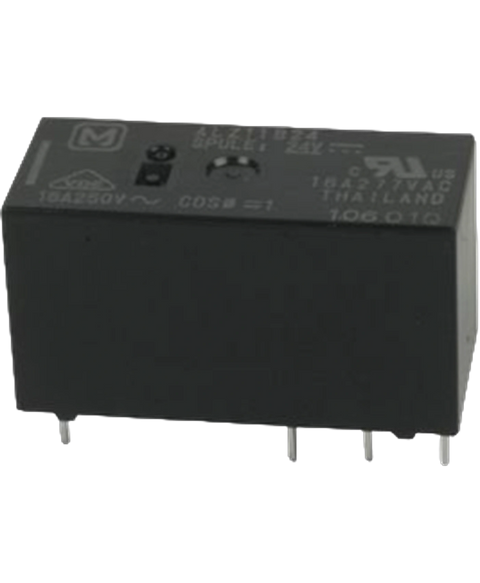

Panasonic ALZ11B24
Panasonic ALZ11B24 power relay, SPDT, 24VDC, 16A.
This Panasonic ALZ11B24 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805331329.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | DIP |
| Coil Current | 16.7 mA |
| Coil Power | 400 mW |
| Coil Resistance | 1.44 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 16 A |
| Contact Material | Silver, Tin |
| Contact Resistance | 100 Ω |
| Depth | 12.5 mm |
| Height | 15.7 mm |
| Lead Free | Lead Free |
| Length | 28.8 mm |
| Max Current Rating | 16 A |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (AC) | 440 V |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Operate Time | 15 ms |
| Power Rating | 400 mW |
| REACH SVHC | Unknown |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| RoHS | Compliant |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 440 V |
| Weight | 12 g |
| Width | 12.5 mm |
