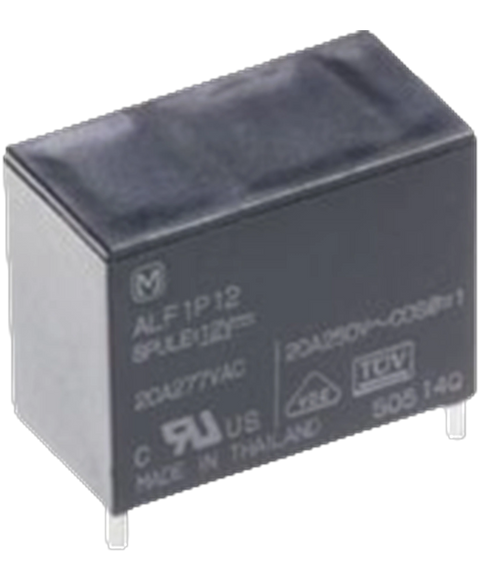

Panasonic ALF1P12
Power,signal relay, spst, momentary, 0.075A (coil), 12VDC (coil), 900mw (coil), dc input, ac output
This Panasonic ALF1P12 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805311162.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 60 °C |
| Coil Current | 75 mA |
| Coil Power | 900 mW |
| Coil Resistance | 160 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12 V |
| Contact Material | Silver, Tin |
| Depth | 15.7 mm |
| Height | 23.6 mm |
| Lead Free | Lead Free |
| Length | 30.1 mm |
| Max Current Rating | 25 A |
| Max Operating Temperature | 60 °C |
| Max Voltage Rating (AC) | 250 V |
| Min Operating Temperature | -40 °C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 4 |
| Number of Poles | 1 |
| Operate Time | 15 ms |
| Power Consumption | 900 mW |
| Power Rating | 900 mW |
| Radiation Hardening | No |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| RoHS | Compliant |
| Switching Capacity | 6.25 kW |
| Switching Current | 25 A |
| Termination | PC Pin |
| Test Voltage | 5 kV |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250 V |
| Weight | 23 g |
| Width | 15.7 mm |
