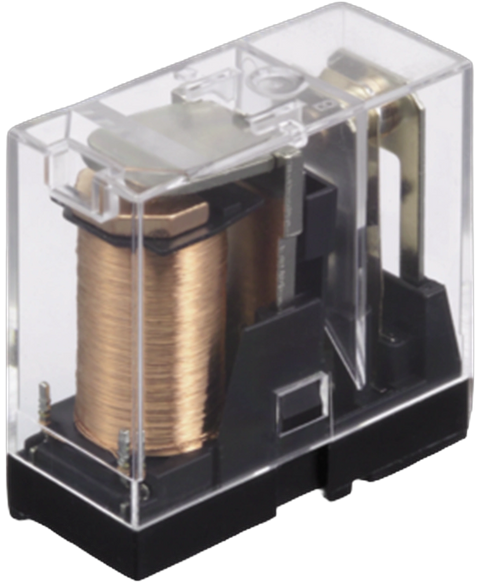

Panasonic AHN12324
Discontinued by manufacturer, relay, general purpose, plug-in, spdt, 16A, 24VDC, with diode and led indication, rohs compliant
This Panasonic AHN12324 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805311568.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 70 °C |
| Coil Current | 22 mA |
| Coil Power | 530 mW |
| Coil Resistance | 1.09 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24 V |
| Contact Material | Silver, Tin |
| Current Rating | 16 A |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 30 V |
| Min Operating Temperature | -40 °C |
| Mount | Plug-In |
| Number of Contacts | 1 |
| Number of Pins | 5 |
| Packaging | Bulk |
| Power Consumption | 530 mW |
| RoHS | Compliant |
| Switching Current | 16 A |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
