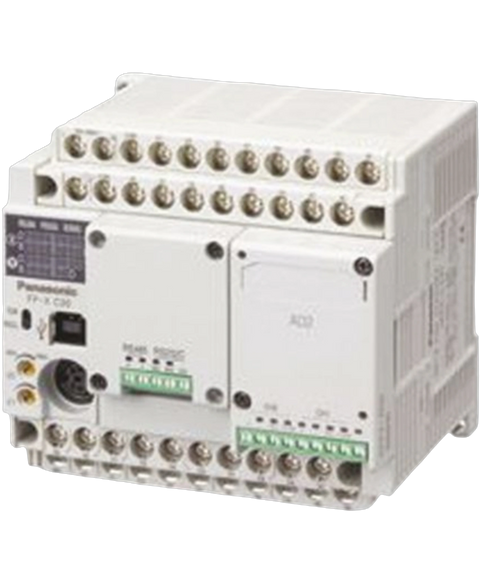

Panasonic AFPX-C30R
PLC compact unit, 16 inputs, 14 relay outputs, 100-240VAC.
This Panasonic AFPX-C30R is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Programmable logic controllers range and is referenced internally as PartLogic SKU PL26805447052.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, cULus |
| Case/Package | 100 |
| Depth | 101.2 mm |
| Length | 90 mm |
| Max Operating Temperature | 55 °C |
| Max Output Voltage | 240 V |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | 0 °C |
| Mount | Chassis Mount, DIN Rail |
| Number of I/Os | 40 |
| Number of Inputs | 16 |
| Number of Outputs | 14 |
| Output Current | 2 A |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Termination | Screw |
| Weight | 498.951607 g |
| Width | 100 mm |
