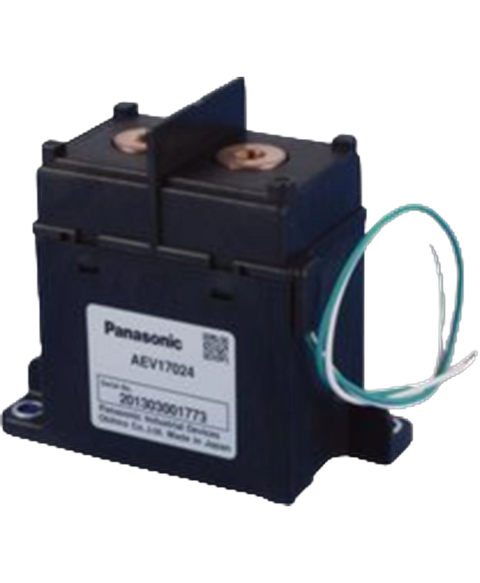

Panasonic AEV17024
Panasonic AEV17024 automotive relay, 24VDC coil, SPST-NO, 200A, flange mount.
This Panasonic AEV17024 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805416110.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Current | 250 mA |
| Coil Power | 6 W |
| Coil Resistance | 96 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 200 A |
| Height | 86.4 mm |
| Length | 67 mm |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Mount | Chassis Mount |
| Operate Time | 50 ms |
| Packaging | Bulk |
| Power Consumption | 6 W |
| REACH SVHC | Unknown |
| Relay Type | Automotive |
| Release Time | 30 ms |
| RoHS | Compliant |
| Termination | Wire Leads |
| Throw Configuration | SPST |
| Width | 45 mm |
