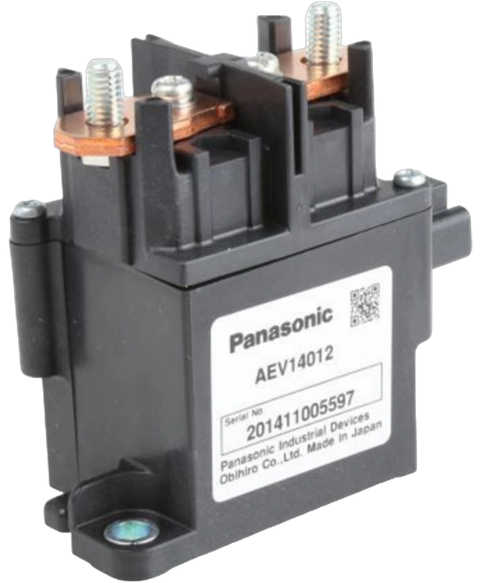

Panasonic AEV14012
Panasonic AEV14012 automotive relay, 12VDC coil, SPST-NO, 120A, flange mount, screw terminals.
This Panasonic AEV14012 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805430388.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 80 °C |
| Coil Current | 353 mA |
| Coil Power | 4.2 W |
| Coil Resistance | 34 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12 V |
| Contact Current Rating | 120 A |
| Current Rating | 120 A |
| Depth | 40 mm |
| Height | 80 mm |
| Length | 82.75 mm |
| Max Current Rating | 120 A |
| Max Operating Temperature | 80 °C |
| Max Voltage Rating (DC) | 400 V |
| Min Operating Temperature | -40 °C |
| Mount | Flanges |
| Number of Contacts | 1 |
| Number of Pins | 4 |
| Operate Time | 50 ms |
| RoHS | Compliant |
| Switching Current | 120 A |
| Termination | Screw |
| Throw Configuration | SPST |
| Weight | 400 g |
