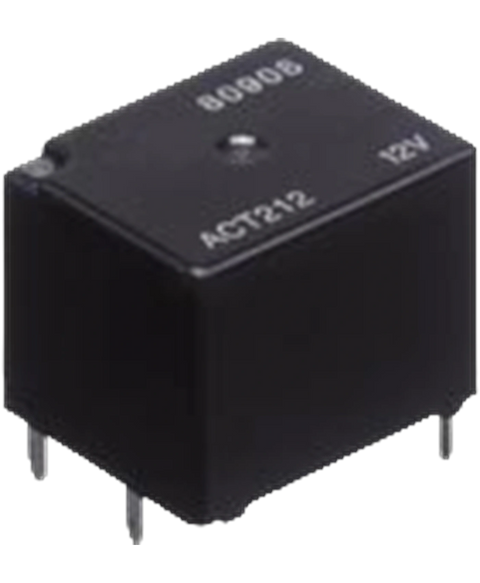

Panasonic ACT212
Panasonic ACT series automotive relay, 12VDC coil, SPDT,SPDT, 20A, through hole.
This Panasonic ACT212 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805330584.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 85 °C |
| Coil Current | 66.7 mA |
| Coil Power | 800 mW |
| Coil Resistance | 180 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12 V |
| Contact Current Rating | 20 A |
| Contact Material | Cadmium, Silver |
| Current Rating | 20 A |
| Depth | 14 mm |
| Height | 13.8 mm |
| Lead Free | Lead Free |
| Length | 17.4 mm |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (DC) | 14 V |
| Min Operating Temperature | -40 °C |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Operate Time | 10 ms |
| Power Consumption | 800 mW |
| Radiation Hardening | No |
| Relay Type | Automotive |
| Release Time | 10 ms |
| RoHS | Compliant |
| Switching Current | 20 A |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (DC) | 14 V |
| Weight | 8 g |
| Width | 7.2 mm |
