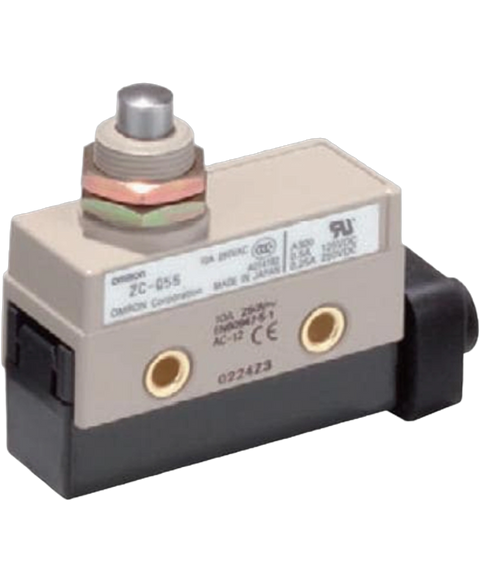

Omron ZC-Q55
Limit switch, enclosed, spdt contact, plunger actuator, 10A, 250VAC, 50,60Hz, IP67
This Omron ZC-Q55 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Switches > Basic switches range and is referenced internally as PartLogic SKU PL26801463992.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Current Rating | 6 A |
| Differential Travel | 203.2 µm |
| Electrical Life | 500 kcycles |
| Max Operating Temperature | 80 °C |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -10 °C |
| Mount | Panel |
| Operating Position | 38.2016 mm |
| Overtravel | 2.9972 mm |
| Packaging | Bulk |
| Pretravel | 1.524 mm |
| Ratings | Dust Tight, IP67, Waterproof |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Cable Leads |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125 V |
| Voltage Rating (DC) | 30 V |
