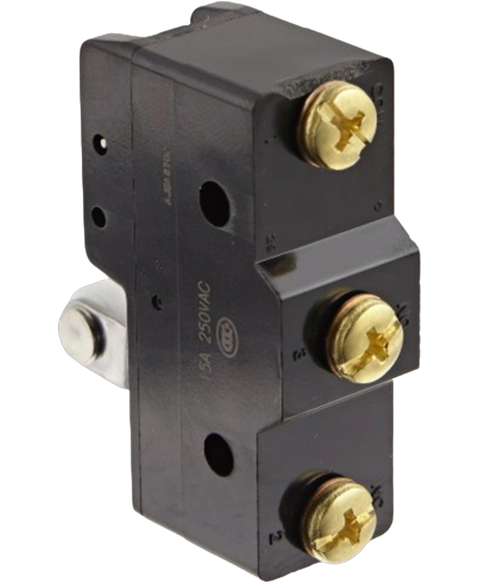

Omron Z-15GW22-B
Omron Z-15GW22B snap-action switch, SPDT, 15A, roller lever.
This Omron Z-15GW22-B is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Switches > Basic switches range and is referenced internally as PartLogic SKU PL26801393681.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Actuator Material | Plastic, Stainless Steel |
| Ambient Temperature Range High | 80 °C |
| Approvals | CSA, UL |
| Contact Current Rating | 15 A |
| Contact Material | Silver |
| Contact Resistance | 15 mΩ |
| Current Rating | 15 A |
| Depth | 17.45 mm |
| Differential Travel | 508 µm |
| Electrical Life | 500 kcycles |
| Height | 42.1 mm |
| Lead Free | Lead Free |
| Length | 49.2 mm |
| Life (Cycles) | 500 kcycles |
| Max Current Rating | 15 A |
| Max Operating Temperature | 80 °C |
| Max Voltage Rating (AC) | 500 V |
| Max Voltage Rating (DC) | 250 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -25 °C |
| Mount | Chassis Mount, Panel, Screw |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 1.57 N |
| Operating Position | 30.1752 mm |
| Orientation | Straight |
| Overtravel | 2.3876 mm |
| Packaging | Bulk |
| Ratings | IP00 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250 V |
| Voltage Rating (DC) | 30 V |
| Weight | 58 g |
