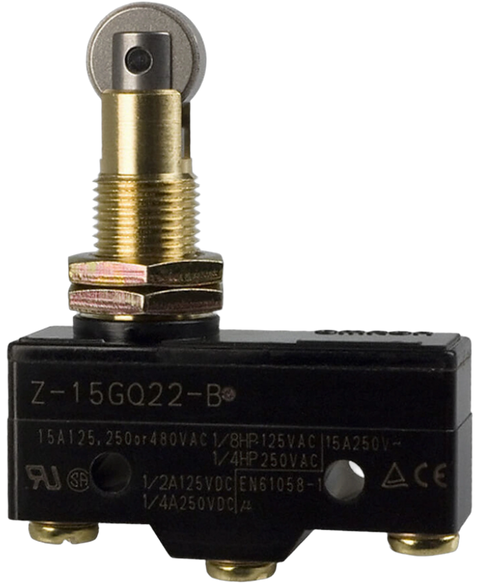

Omron Z-15GQ22-B
Basic switch, z series, standard, 15A, 0.5mm contact sap, panel mount roller plunger, general-purpose, screw terminal
This Omron Z-15GQ22-B is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Switches > Basic switches range and is referenced internally as PartLogic SKU PL27102346896.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Actuator Material | Stainless Steel |
| Ambient Temperature Range High | 80 °C |
| Approvals | CSA, UL |
| Contact Current Rating | 15 A |
| Contact Material | Silver |
| Contact Resistance | 15 mΩ |
| Current Rating | 15 A |
| Depth | 17.45 mm |
| Differential Travel | 50.8 µm |
| Electrical Life | 500 kcycles |
| Lead Free | Lead Free |
| Length | 49.2 mm |
| Max Current Rating | 15 A |
| Max Operating Temperature | 80 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 250 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -25 °C |
| Mount | Panel, Screw |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 3.43 N |
| Operating Position | 33.3502 mm |
| Orientation | Straight |
| Overtravel | 3.5814 mm |
| Packaging | Bulk |
| Pretravel | 381 µm |
| Ratings | IP00 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Schedule B | 8536509040, 8536509040|8536509040|8536509040|8536509040|8536509040 |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 480 V |
| Voltage Rating (DC) | 250 V |
| Weight | 58 g |
