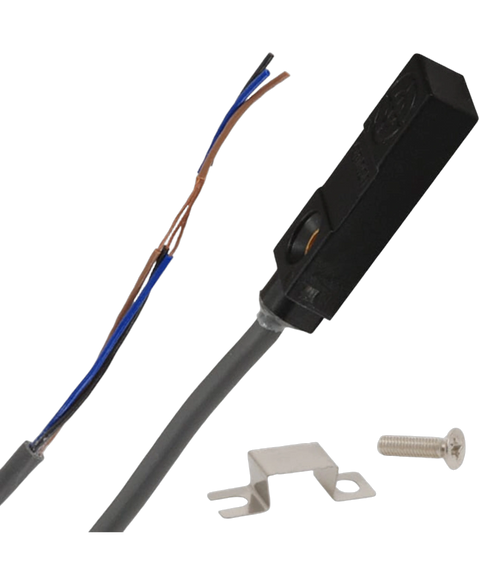

Omron TL-W3MB1
Proximity sensor, square type, pre-wired, 3mm sensing distance, unshielded, pnp
This Omron TL-W3MB1 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26960442435.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CSA, UL |
| Body Material | Plastic |
| Cable Length | 2 mm |
| Case/Package | Module |
| Depth | 6 mm |
| Height | 6 mm |
| Housing Material | ABS |
| Lead Free | Contains Lead |
| Length | 27 mm |
| Load Current | 100 mA |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage | 24 V |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage | 12 V |
| Min Supply Voltage (DC) | 10 V |
| Mount | Brackets, Panel |
| Number of Pins | 3 |
| Operating Supply Current | 15 mA |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| Response Frequency | 600 Hz |
| RoHS | Compliant |
| Sensing Distance | 3 mm |
| Sensing Method | Inductive |
| Shielding | Unshielded |
| Switching Current | 100 mA |
| Switching Frequency | 600 Hz |
| Termination | Cable Leads |
| Width | 10 mm |
