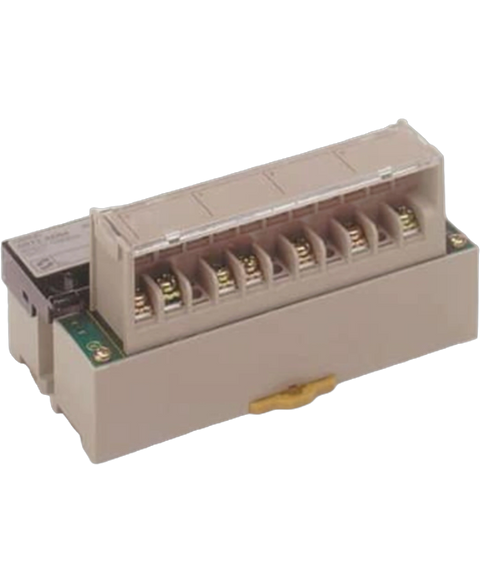

Omron SRT2-ROC16
The Omron SRT2-ROC16 is designed as a remote output relay module, providing reliable control with 16 distinct output channels. Utilizing a long-range and high-speed communication protocol, it is well-suited for a variety of applications.
This Omron SRT2-ROC16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Relay output range and is referenced internally as PartLogic SKU PL26801436402.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | SRT2-ROC16 |
| I/O type | Relay outputs, 16 points, NO contacts |
| Applicable relay | G6D-1A (one per output point) |
| Rated load | 3 A at 250 VAC, 3 A at 30 VDC (resistive) |
| Max contact voltage | 250 VAC, 30 VDC |
| Max switching capacity | 730 VA (AC), 90 W (DC) |
| Min permissible load | 10 mA at 5 VDC |
| Life expectancy (electrical) | ≥100,000 operations at rated load, 1,800 ops/h |
| Life expectancy (mechanical) | ≥20,000,000 operations at 18,000 ops/h |
| Power supply voltage | 24 VDC +10%/−15% |
| Current consumption | 350 mA max at 24 VDC |
| Network | CompoBus, multi-drop and T-branch |
| Units per master | 16-point units: 8 per master |
| Dielectric strength | 2,000 VAC 1 min; 500 VAC 1 min (per spec details) |
| Noise immunity | IEC 61000-4-4, 2 kV (power lines) |
| Vibration resistance | 10 to 55 Hz, 0.75 mm double amplitude |
| Shock resistance | 100 m/s² malfunction, 300 m/s² destruction |
| Mounting | DIN rail |
| Degree of protection | IP20 |
| Operating temperature | 0 to 55°C (no icing/condensation) |
| Storage temperature | −20 to 65°C (no icing/condensation) |
| Operating humidity | 35% to 85% RH |
| Approved standards | UL 508, CSA C22.2 No. 14 |
| Dimensions | Approx. 156 x 51 x 51 mm (16-point model) |
| Weight | 240 g max (16-point model) |
