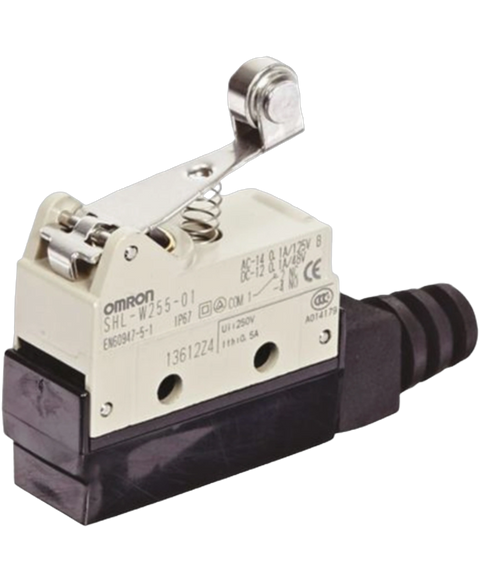

Omron SHL-W255
Microswitch, hinge lever, spdt 10A 480v, microswitch type:subminiature, microswitch actuator:hinge lever, contact configuration:spdt, switch terminals:screw, contact current max:10A, contact voltage dc nom:250VDC, switch case:zinc rohs compliant: yes
This Omron SHL-W255 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety switches > Limit switches range and is referenced internally as PartLogic SKU PL26801425852.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Contact Current Rating | 10 A |
| Contact Resistance | 15 mΩ |
| Current Rating | 5 A |
| Depth | 17.5 mm |
| Differential Travel | 2.4892 mm |
| Electrical Life | 500 kcycles |
| Housing Material | Zinc |
| Length | 73.5 mm |
| Max Operating Temperature | 80 °C |
| Max Voltage Rating (AC) | 480 V |
| Max Voltage Rating (DC) | 250 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -10 °C |
| Mount | Chassis Mount, Panel, Screw |
| Operating Force | 3.92 N |
| Operating Position | 33.02 mm |
| Orientation | Straight |
| Overtravel | 2.9972 mm |
| Pretravel | 8.001 mm |
| Ratings | Dust Tight, IP67, Waterproof |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Schedule B | 8536509055 |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125 V |
| Voltage Rating (DC) | 30 V |
| Width | 40.9 mm |
