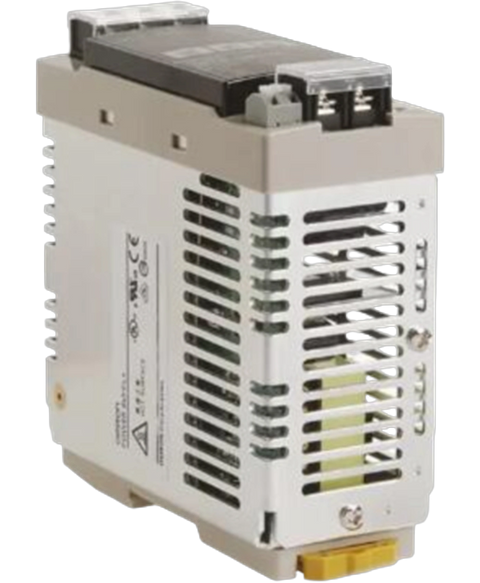

Omron S8VS-06024A
Switch mode power supply, s8vs, 100-240VAC input, 60W, 24VDC output, indication monitor (maintenance forecast), sinking (emitter com), ul 1310, screw terminal block
This Omron S8VS-06024A is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Switch mode power supplies range and is referenced internally as PartLogic SKU PL26933610659.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, VDE, cULus, cURus |
| Current - Output 1 | 2.5 A |
| Current Rating | 2.5 A |
| Depth | 40 mm |
| Efficiency | 78 % |
| Height | 95 mm |
| Isolation Voltage | 3 kV |
| Length | 108.3 mm |
| Max Input Voltage | 240 V |
| Max Operating Temperature | 60 °C |
| Max Output Current | 2.5 A |
| Max Output Power | 60 W |
| Max Output Voltage | 24 V |
| Max Power Dissipation | 60 W |
| Max Voltage Rating (AC) | 264 V |
| Min Input Voltage | 100 V |
| Min Input Voltage (AC) | 85 V |
| Min Operating Temperature | -10 °C |
| Min Output Voltage | 24 V |
| Mount | DIN Rail |
| Nominal Output Voltage | 24 V |
| Number of Outputs | 1 |
| Number of Pins | 7 |
| Output Current | 2.5 A |
| Output Power | 60 W |
| Output Voltage | 24 V |
| Power Rating | 60 W |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Voltage - Output 1 | 24 V |
| Voltage Rating (AC) | 240 V |
| Weight | 329.999987 g |
| Width | 40 mm |
