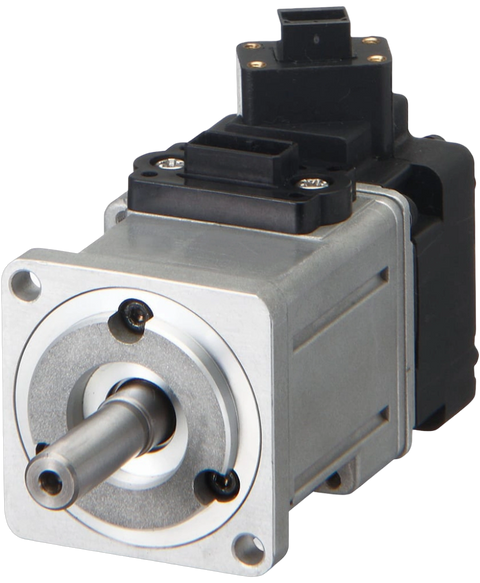

Omron R88M-K75030H-S2
The R88M-K75030H-S2 is an Omron-designed AC servo motor with a straight shaft. It operates at an input voltage of 200 V AC and has a rated power of 0.75 kW. It can reach a speed of 3000 rpm with a continuous current of 4.1 A.
This Omron R88M-K75030H-S2 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805757987.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Type | AC Servo Motor |
| Product Line | R88M-K |
| Part Number | R88M-K75030H-S2 |
| Weight | 2.00 lbs (0.91 kg) |
| Continuous Current | 4.1 A |
| Shaft | Straight |
| Shaft Key | Included |
| Storage Temperature | -20 to 65°C |
| Operating Temperature | 0 to 40°C |
| Shaft Tap | Included |
| IP Rating | IP67 |
| Humidity | 20% to 85% RH (non-condensing) |
| Speed | 3000 rpm |
| Rated Power | 0.75 kW |
| Input Voltage | 200 V AC |
| Rated Torque | 2.4 Nm |
| Peak Torque | 7.1 Nm |
| Brand | Omron |
