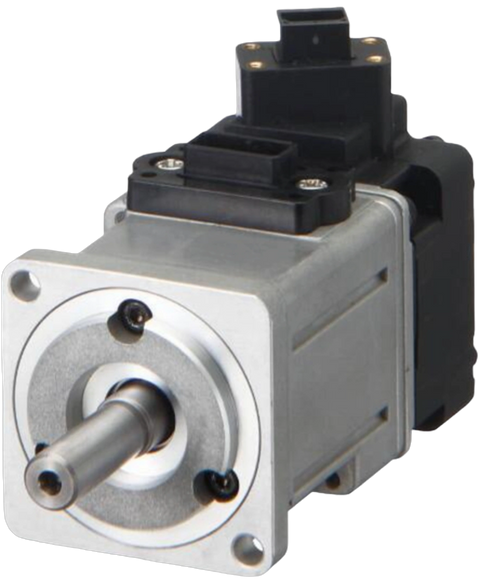

Omron R88M-K40030T-BS2
The R88M-K40030T-BS2 from Omron is a high-performance AC servomotor designed for demanding applications. It operates at 200 V and utilizes an absolute encoder for precision control, allowing for efficient monitoring and feedback during operation.
This Omron R88M-K40030T-BS2 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805595635.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Line | R88M-K |
| Part Number | R88M-K40030T-BS2 |
| Weight | 11.06 lbs (5.02 kg) |
| Motor Type | AC Servomotor |
| Operating Voltage | 200 V |
| Encoder Type | Absolute encoder |
| Brake Included | Yes |
| Brake Power Consumption | 9 W |
| Static Friction Torque of Brake | 1.27 N·m |
| Shaft Configuration | Straight, key, tapped (standard) |
| Power Rating | 400 W |
| Current | 2.4 A (Rated); 10.2 A (Peak) |
| Speed Range | 3000 rpm (Rated); 6000 rpm (Peak) |
| Torque | 1.3 N·m (Rated); 3.8 N·m (Peak) |
| Power Rate | 57.8 kW/s |
| Allowable Load | 245 N (Radial); 98 N (Thrust) |
| Rotor Inertia | 0.28×10⁻⁴ kg·m² |
| Time Constants | Mechanical: 0.46 ms; Electrical: 3.4 ms |
| Brand | Omron |
