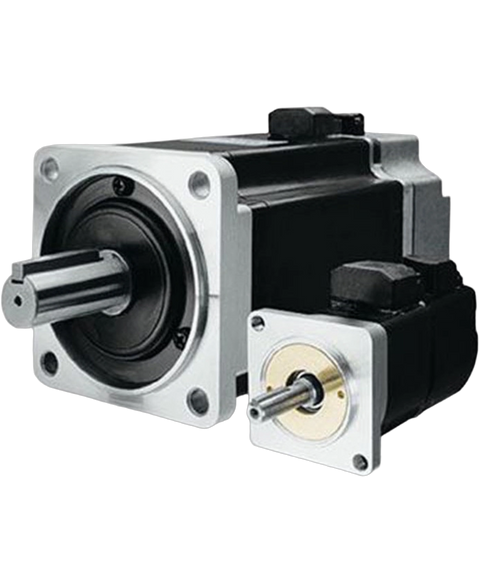

Omron R7M-A75030-S1
The R7M-A75030-S1 is an Omron AC servo motor with a straight shaft equipped with a key. It operates efficiently at a rated voltage of 230 VAC and can handle a continuous current of 4.4 Amps. With a power output of 750 Watts, it delivers a rated torque of 2.388 Nm, functioning effectively across any running direction.
This Omron R7M-A75030-S1 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805669598.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Line | R7 |
| Part Number | R7M-A75030-S1 |
| Weight | 3.44 lbs (1.56 kg) |
| Name of Module | AC Servo Motor |
| Key Status | Straight Shaft with Key |
| Rated RMS Current | 4.4 Amps |
| Input Power Supply Frequency | 50/60 Hz |
| Ambient Operating Temperature | 0°C to 40°C |
| Ambient Humidity | 20% to 80% RH (without condensation) |
| Ambient Storage Temperature | -20°C to 60°C |
| Ambiance | No corrosive gases |
| Run Position | Any Direction |
| Rated Voltage | 230 VAC |
| Motor Shape | Cylindrical Type |
| Capacity | 750 Watts |
| Rated Torque | 2.388 Nm |
| Speed | 3000 RPM |
| Brake Status | Without Brakes |
| Brand | Omron |
