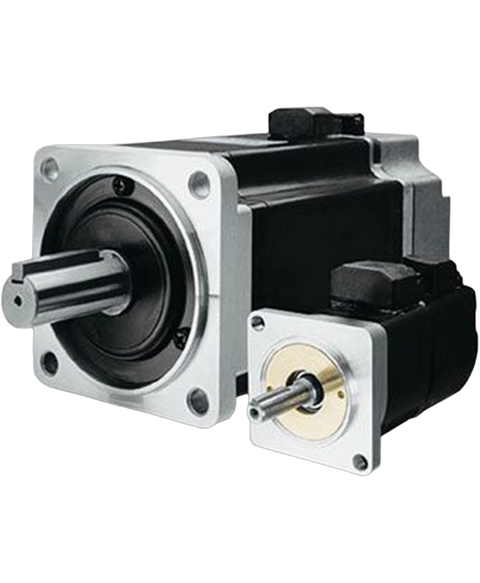

Omron R7M-A40030-BS1-D
The R7M-A40030-BS1-D from Omron is a cylindrical AC servo motor with a rated voltage of 230 VAC. It provides 400 watts of power and can operate at speeds up to 3000 RPM, generating a torque of 1.273 Nm.
This Omron R7M-A40030-BS1-D is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805293931.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Line | R7 |
| Part Number | R7M-A40030-BS1-D |
| Weight | 2.31 lbs (1.05 kg) |
| Description of Module | AC Servo Motor |
| Rated Voltage | 230 VAC |
| Capacity | 400 Watts |
| Rated Torque | 1.273 Nm |
| Speed | 3000 RPM |
| Rated RMS Current | 2.6 Amps |
| Input Power Supply Frequency | 50/60 Hz |
| Brake Status | 24 VDC Brakes |
| Key Status | Straight Shaft with Key |
| Motor Shape | Cylindrical Type |
| Ambient Operating Temperature | 0°C to 40°C |
| Ambient Humidity | 20% to 80% RH (without condensation) |
| Ambient Storage Temperature | -20°C to 60°C |
| Ambiance Requirements | No corrosive gases in the environment |
| Run Position | Any Direction |
| Brand | Omron |
