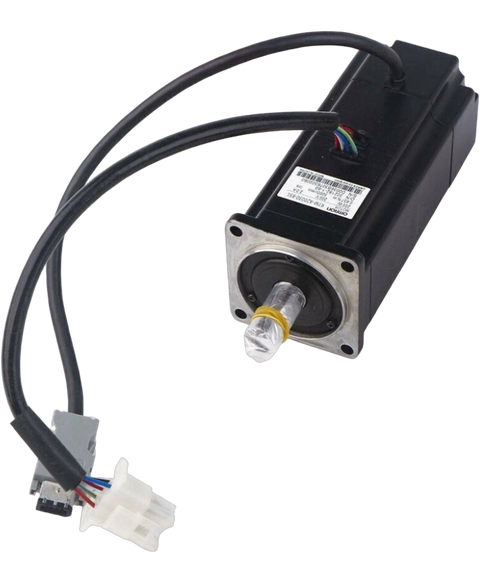

Omron R7M-A20030-BS1
Omron’s R7M-A20030-BS1 model is a reliable AC servomotor operating at 230 VAC and delivering a power output of 200W. With a maximum speed of 3000 RPM, this servomotor achieves a rated torque of 90.21 oz-in (637 mNm).
This Omron R7M-A20030-BS1 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805409068.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Type | AC Motor Servomotor |
| Product Line | R7 |
| Part Number | R7M-A20030-BS1 |
| Weight | 1.63 lbs (0.74 kg) |
| Voltage | 230VAC |
| Power | 200W |
| Speed | 3000 RPM |
| Size / Dimension | 2.362" x 2.362" (60.00mm x 60.00mm) |
| Torque - Rated | 90.21 oz-in (637 mNm) |
| Diameter - Shaft | 0.551" (14.00mm) |
| Termination Style | Cable with Connector |
| Torque - Max Momentary | 270.5 oz-in (1910 mNm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Features | Brake, Key |
| Encoder Type | Incremental |
| Mounting Hole Spacing | 2.756" (70.00mm) |
| Operating Temperature | 0°C ~ 40°C |
| Approval Agency | cUL, UL |
| Brand | Omron |
