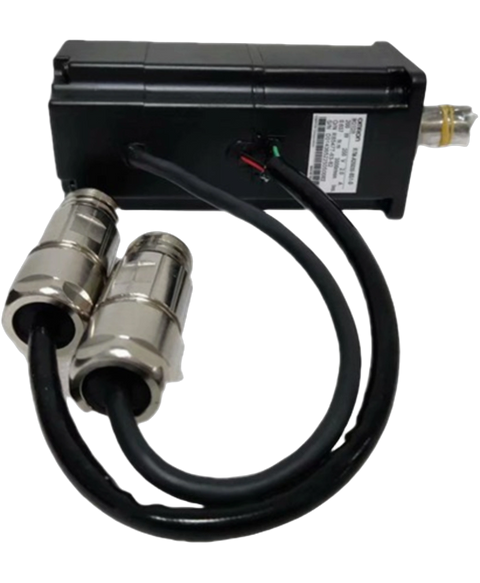

Omron R7M-A10030
The R7M-A10030 from Omron is an AC servo motor designed for precise motion control applications. This motor operates efficiently at a rated voltage of 230V AC and has a nominal power output of 100W, supporting a maximum speed of 3000 RPM.
This Omron R7M-A10030 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805308377.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Type | AC Servo Motor |
| Product Line | R7 |
| Part Number | R7M-A10030 |
| Weight | 3.00 lbs (1.36 kg) |
| Encoder Type | Incremental |
| Voltage (Rated) | 230V AC |
| Shaft Diameter | 0.551" (14mm) |
| Operating Temperature | 0°C ~ 40°C |
| Power (Rated) | 100W |
| Shaft Length (with Bearing) | 0.984" (25mm) |
| Approval Agencies | cUL, UL |
| Rated Speed (RPM) | 3000 RPM |
| Mounting Hole Spacing | 1.811" (46mm) |
| Rated Torque | 25.49 oz-in (180 mNm) |
| Termination Style | Cable with Connector |
| Max Momentary Torque | 135.9 oz-in (960 mNm) |
| Brand | Omron |
