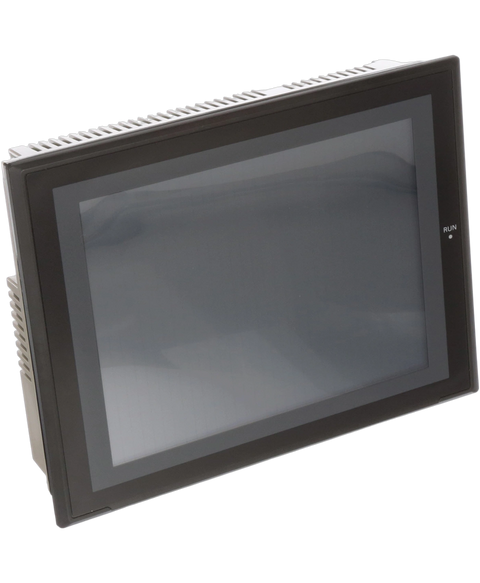

Omron NS8-TV01B-V2
The NS8-TV01B-V2 from Omron is designed as a touch panel for human-machine interaction. It features an 8.4-inch TFT display with a resolution of 640 x 480 dots, providing a color capacity of 256 hues. This HMI's robust construction allows it to operate from 0 to 40°C while maintaining resistance to water and dust, rated at IP65.
This Omron NS8-TV01B-V2 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26801446585.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Type | HMI (Human Machine Interface) Touch Panel |
| Product Line | NS |
| Part Number | NS8-TV01B-V2 |
| Weight | 5.00 lbs (2.27 kg) |
| Number of Dots | 640 x 480 dots |
| Case Color | Black |
| Ambient Operating Temperature | 0 to 40°C |
| Humidity Tolerance | 35% to 85% in a non-condensing environment |
| Power Supply Voltage Rating | 24 Volts DC |
| Protection Class | IP65 (Water and dust-resistant) |
| Display Type | 8.4 inches TFT (Thin Film Transistor) LED backlight display |
| Ethernet Port | 10/100 Base-T |
| Display Color | 256 colors |
| Communication Port | Two RS-232C ports |
| Compliance Standard | EC, cUL, NEMA, C1D2, and UL 1604 certified |
| Screen Data Capacity | 60 megabytes |
| Power Consumption | 25 Watts (maximum) |
| Brand | Omron |
